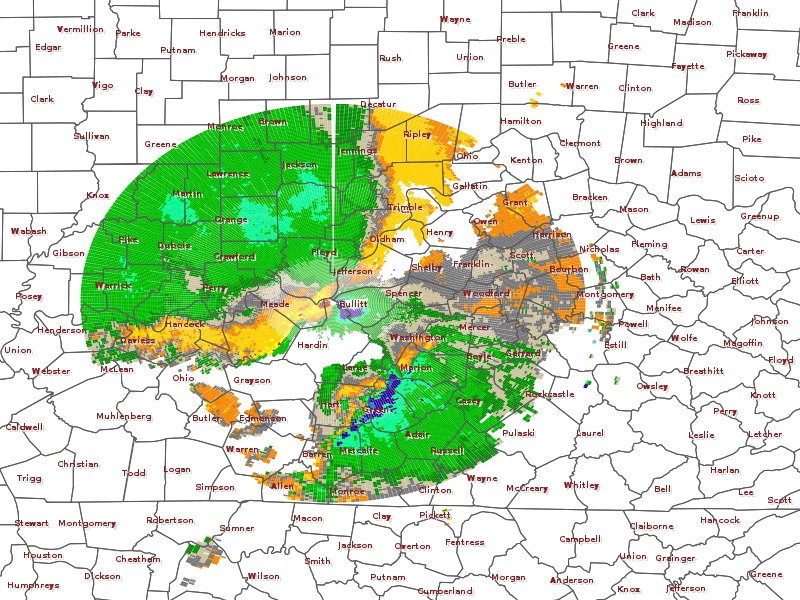

The following image is part of the nbspradgis-tutorial-n1s

The image was produced using the COMET CASE 044 storm relative mean radial velocity, 1.45 degree from LVX. This dataset contains the storm relative mean radial velocity, 1.45 degrees elevation angle (P) data product archived from the LOUISVILLE, KY/Fort Knox LVX radar. Data are archived in the NIDS format.

The image was produced as folows:

• Convert the data,

      cp data/test-data/N1S_20021110_0814 data/n1slvx.nids
      nbspunz -C data/n1slvx.nids | nbspradgis -d data -n n1slvx


• Create the image

      shp2img -m maps/n1slvx.map -o ../img/n1slvx.png


	knots
	RF
	+50
	+40-50
	+30-40
	+30-22
	+22
	+5-10
	+0-5
	-0-5
	-5-10
	-10-22
	-22-30
	-30-40
	-40-50
	-50
	SNR < TH
